OrienTek TPM-35 Fiber Optic Power Meter Optical Light Source
OrienTek TPM-35 Fiber Optic Power Meter Optical Light Source
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: ORIENTEK
Origin: Mainland China

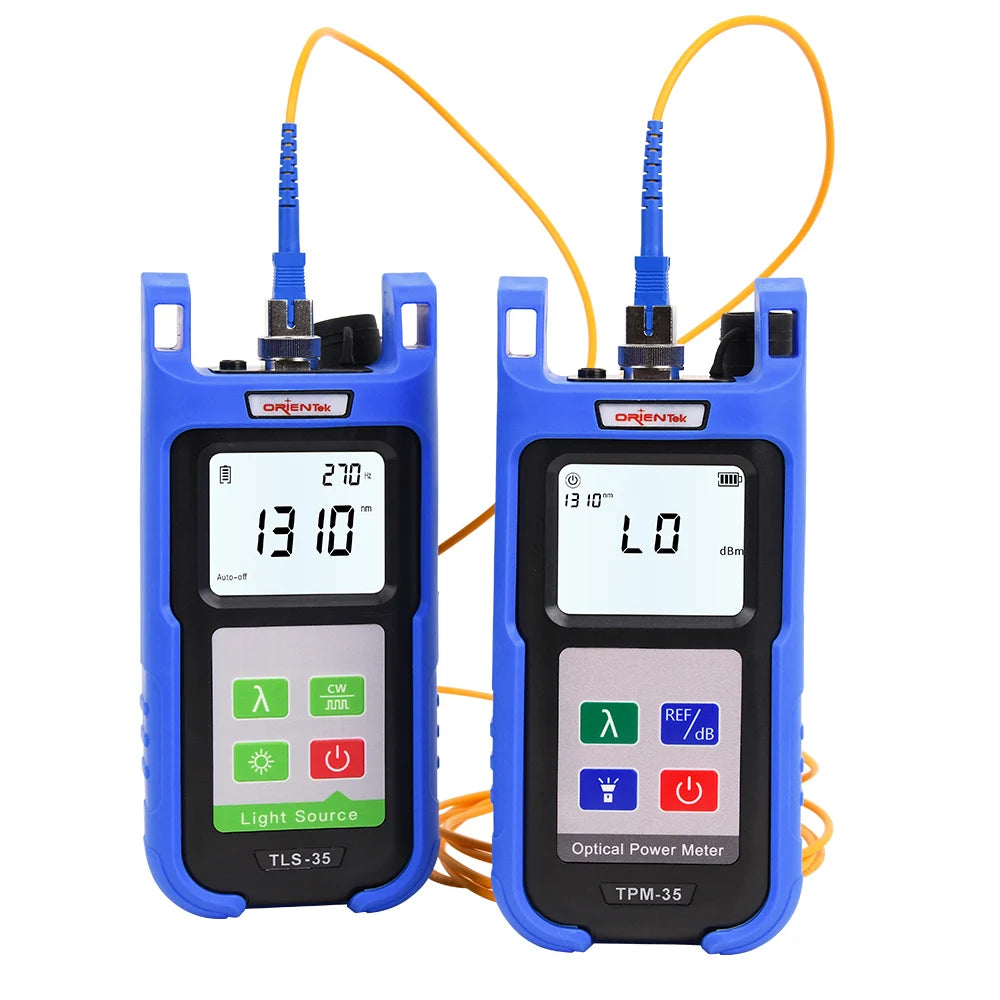

Orientek TPM-35 Fiber Optic Power Meter + TLS-35 Optical Light Source

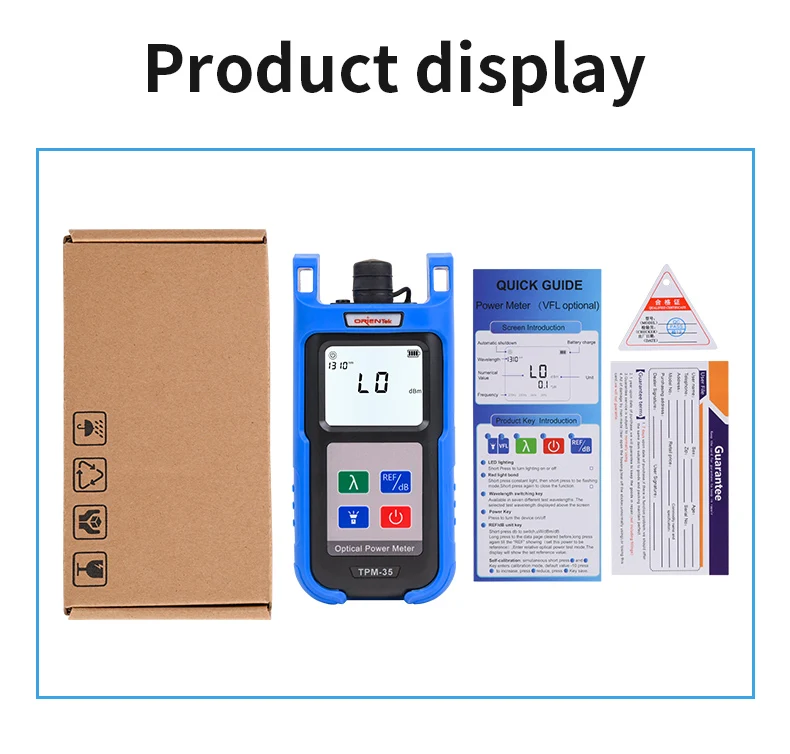

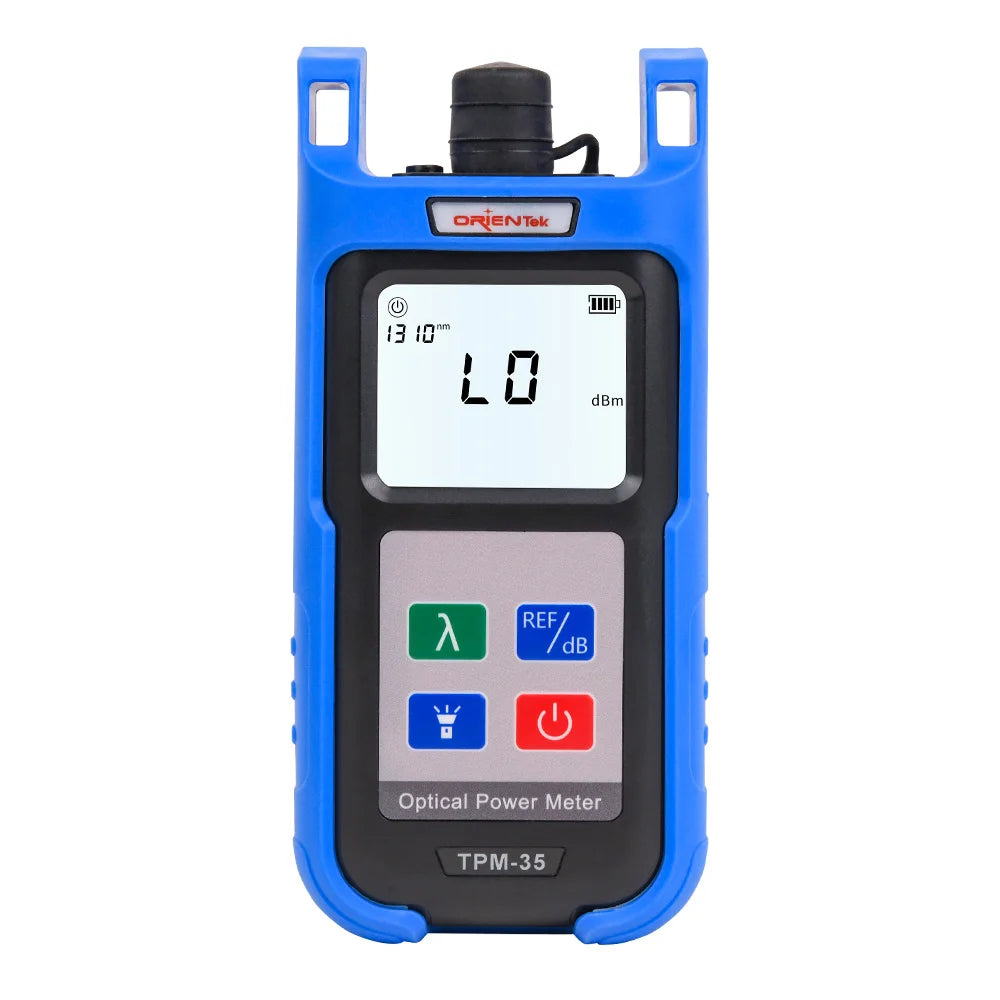

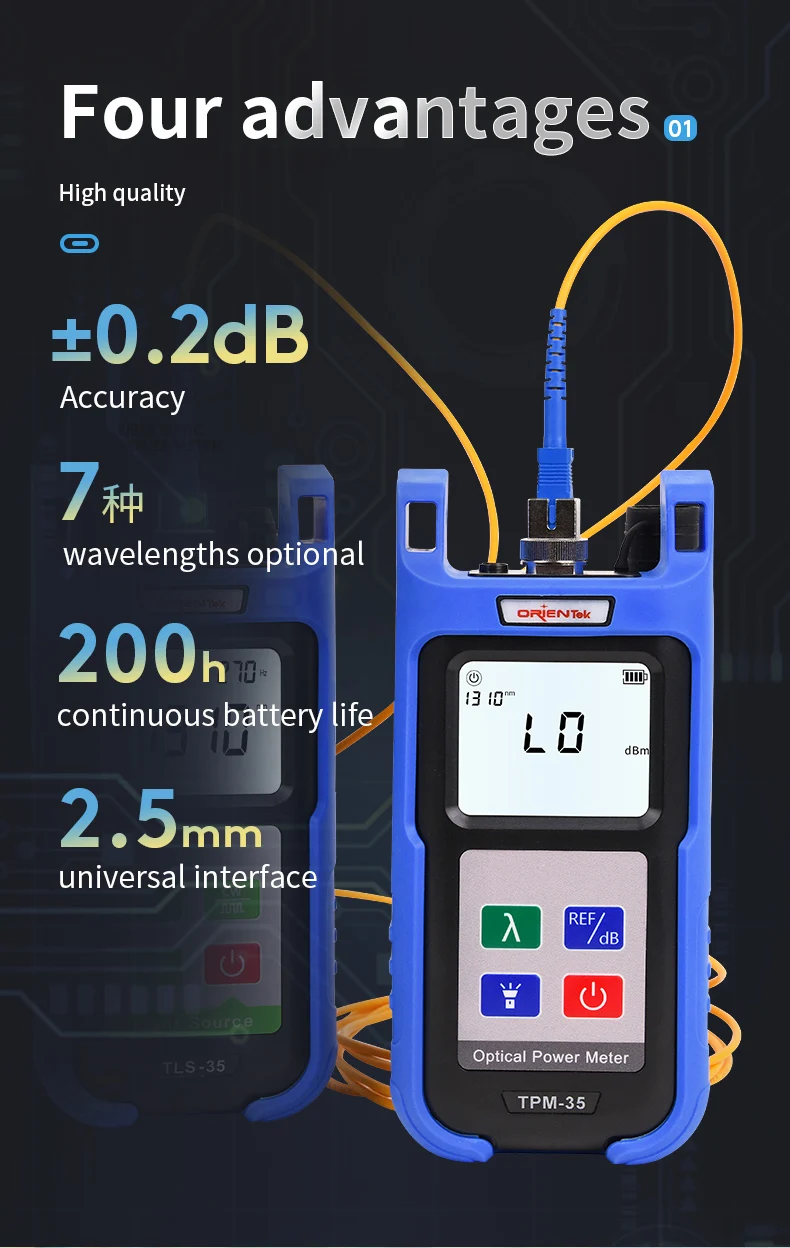

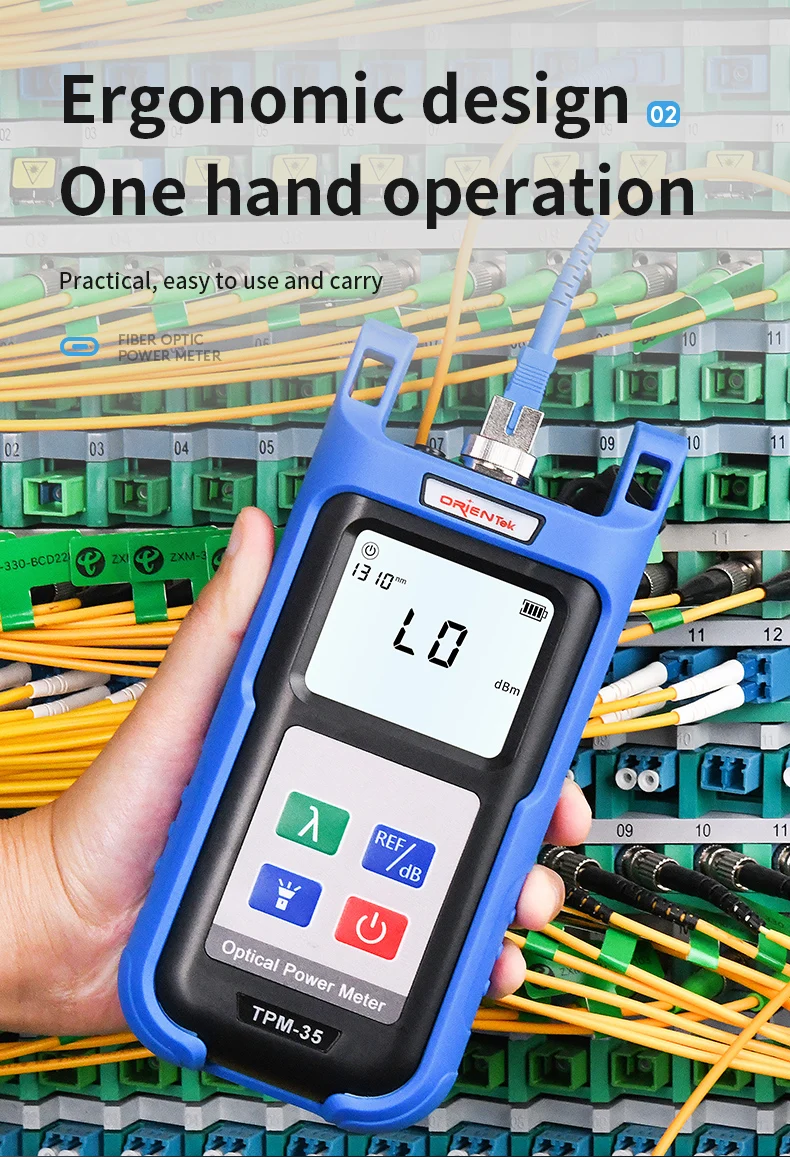

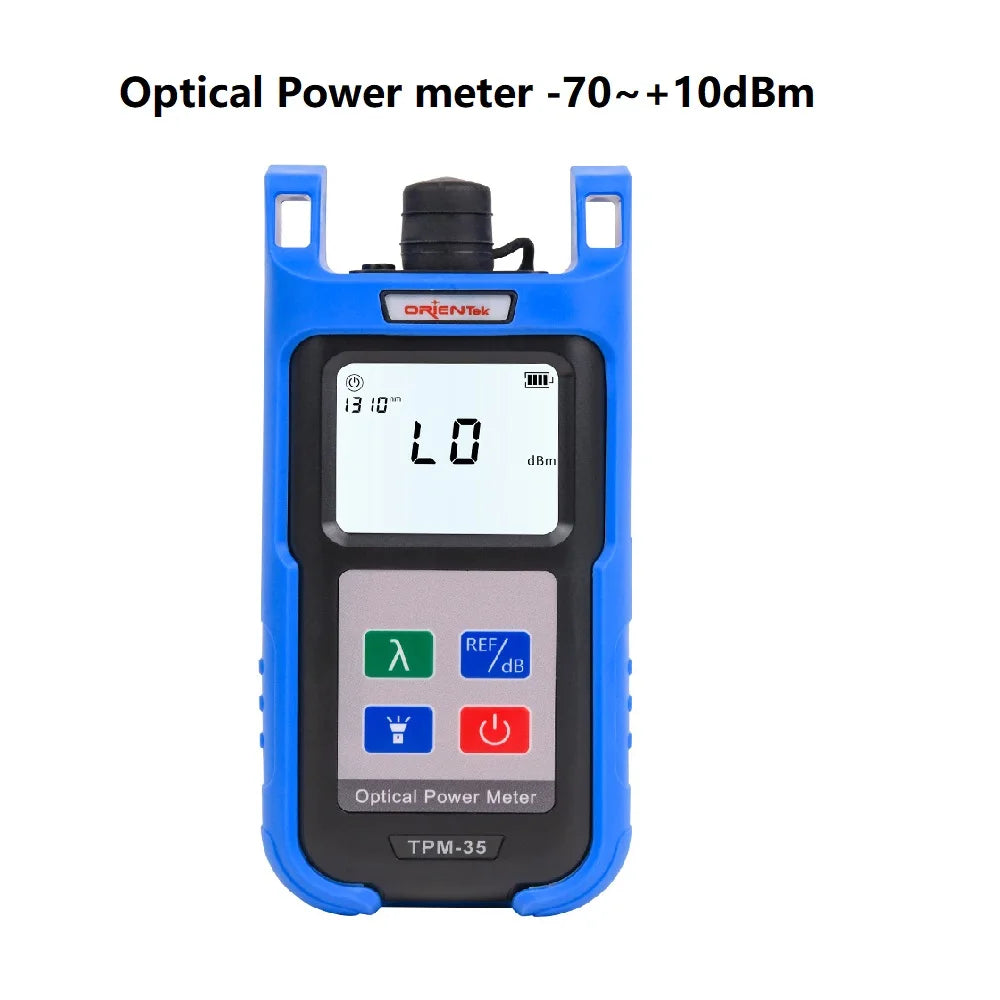

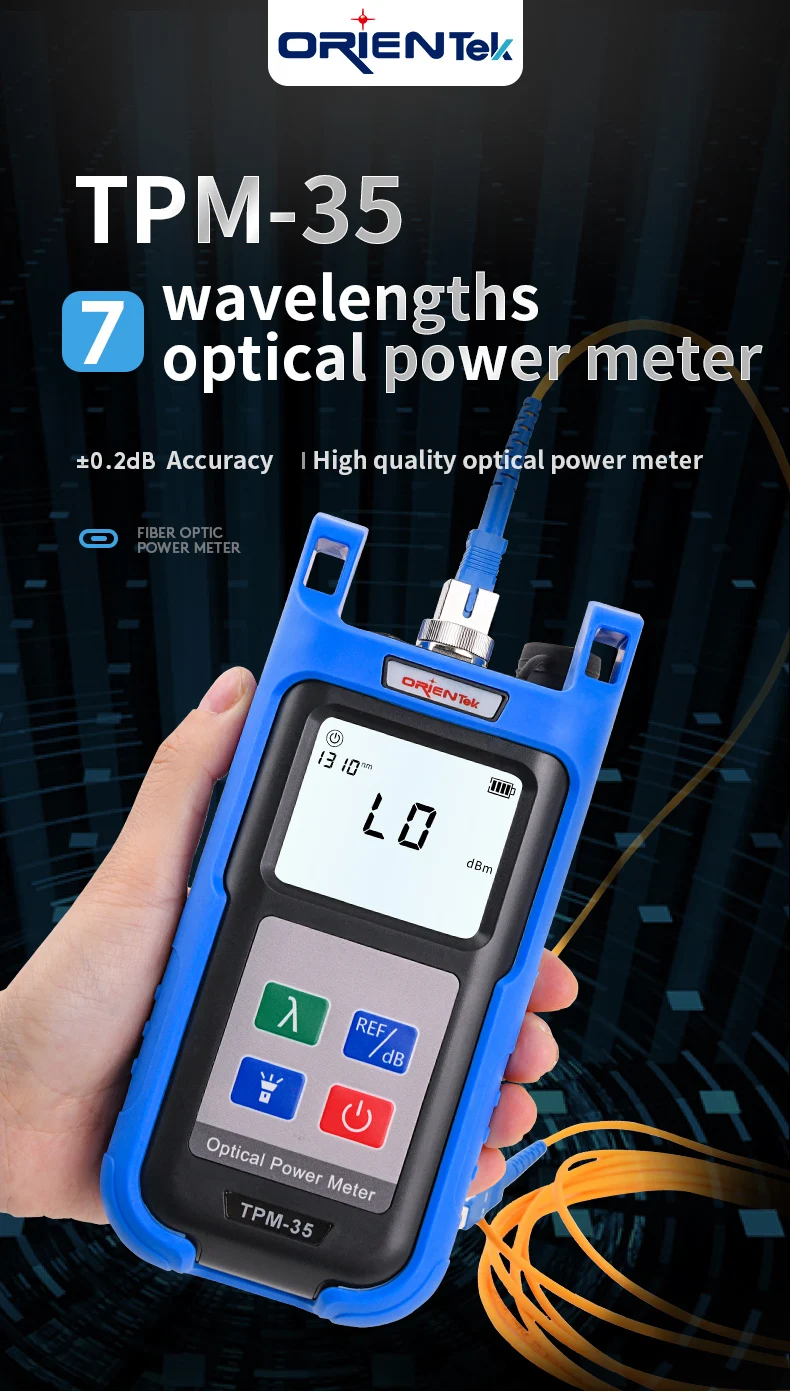

TPM-35 Optical Power Meter
|
Wavelengths(nm) |

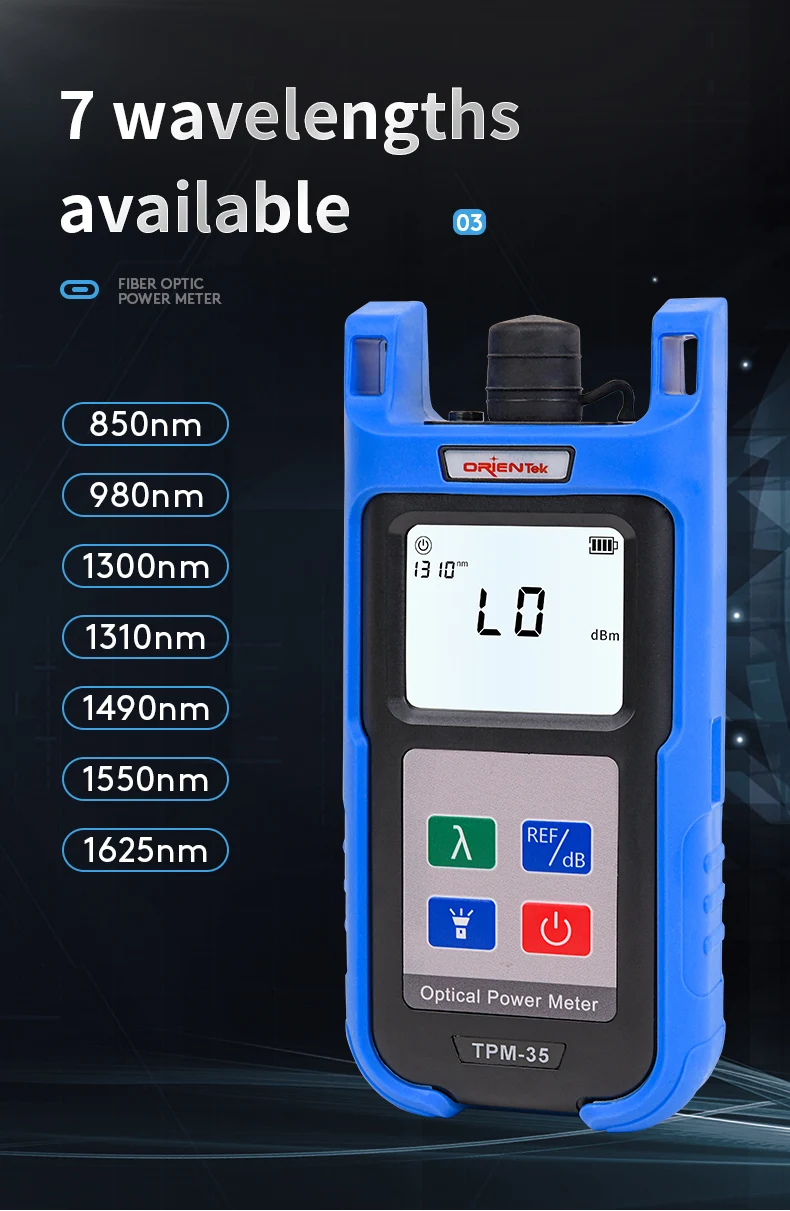

850/980/1300/1310/1490/1550/1625(nm) |
|
Measurement Range |
-70~+10dBm |
|
Optical Connector |

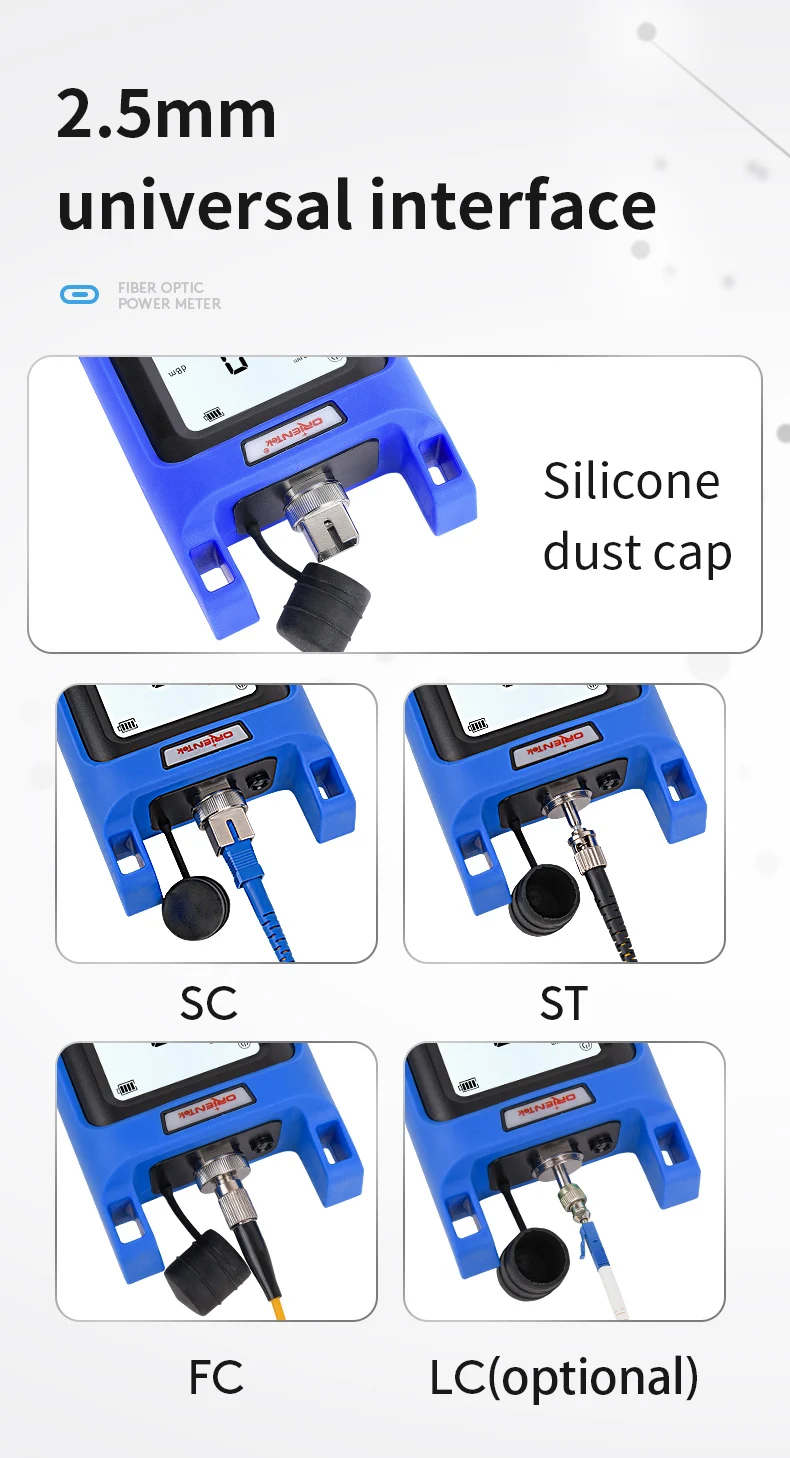

2.5mm universal interface + SC Connector |
|
Power Supply |
3AA 1.5V battery (Package not included battery) |
|
Resolution |
0.01dB |
|
Working Temperature |
-10~+60(°C) |
|
Storage Temperature |
-25~+70(°C) |
|
Dimensions/Weight |
160*85*45mm/220g |

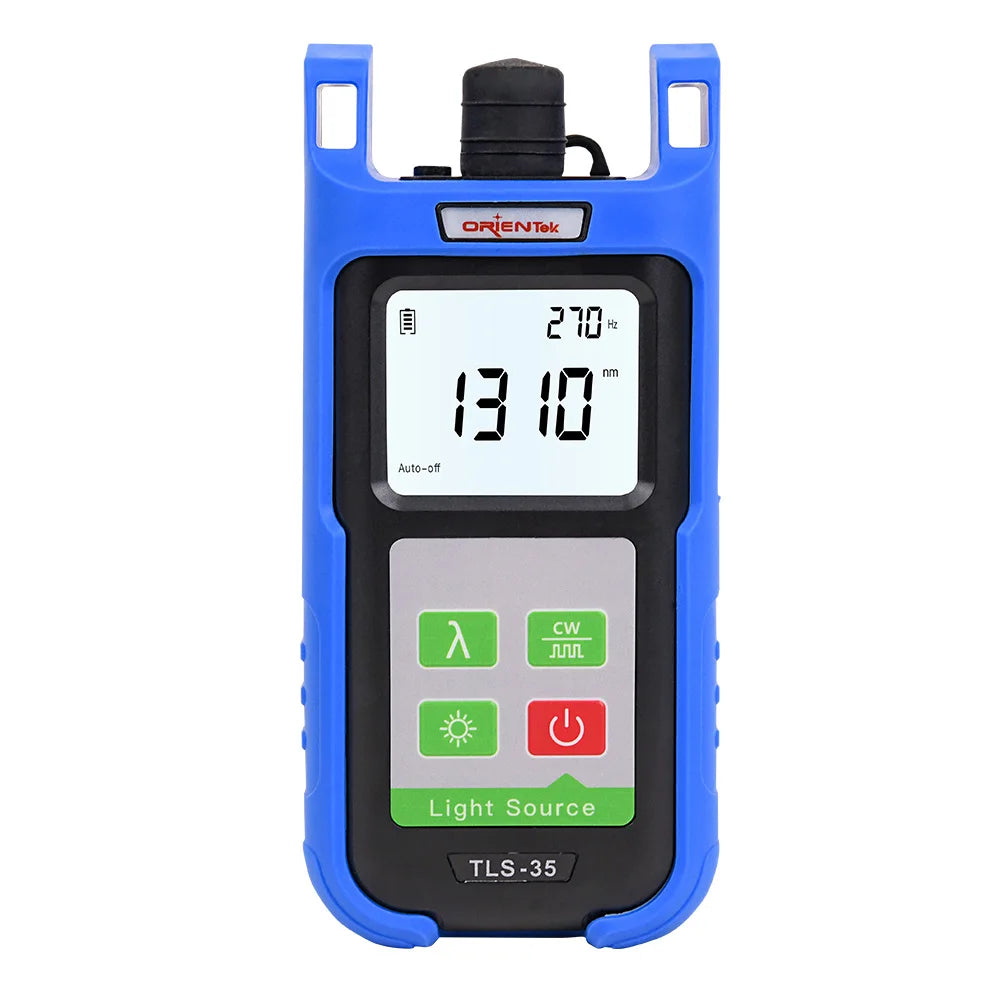

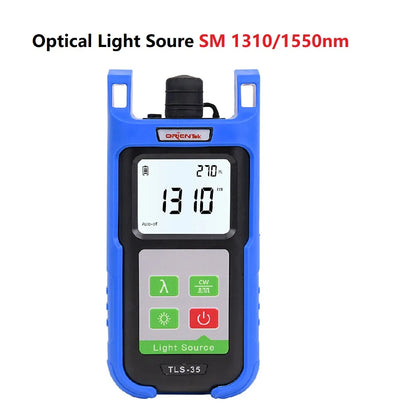

TLS-35 Optical Light Source
|
Wavelength(nm) |
1310+1550nm（TLS-35-S) |
|

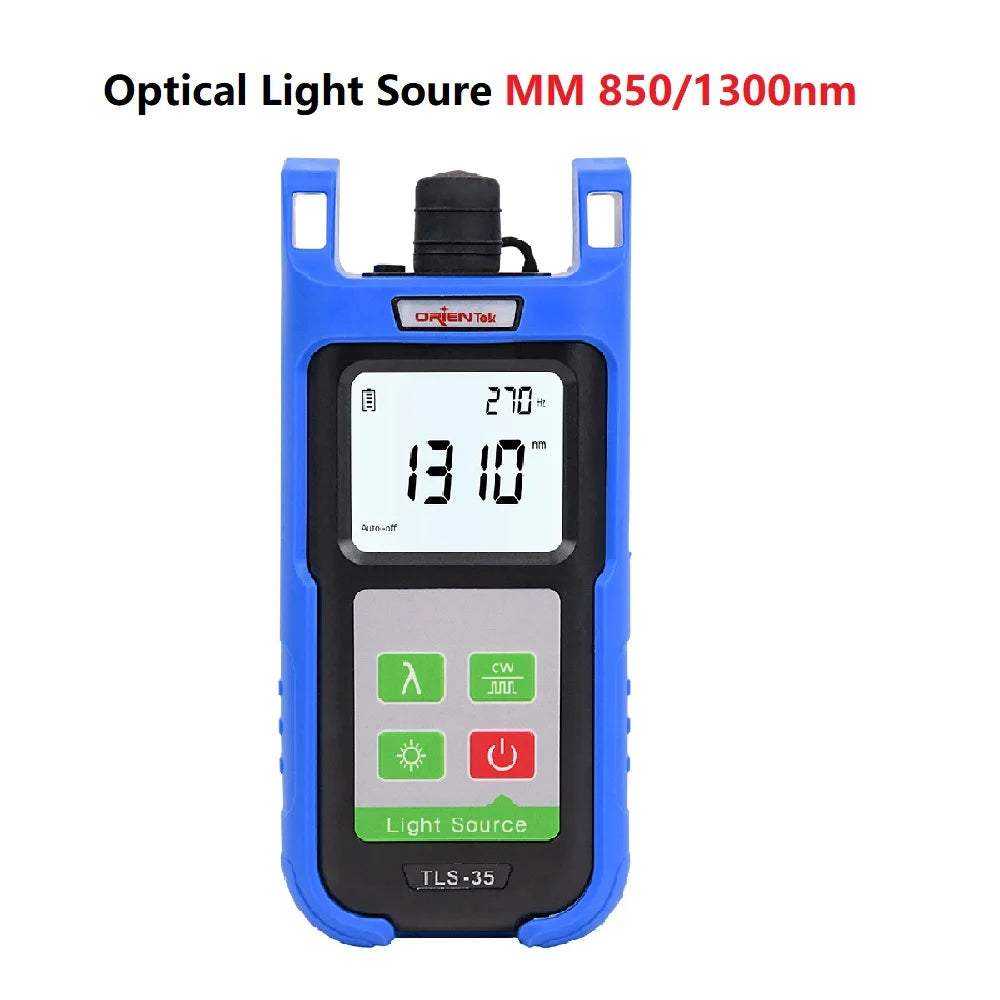

850+1300nm（TLS-35-M) |
|
|

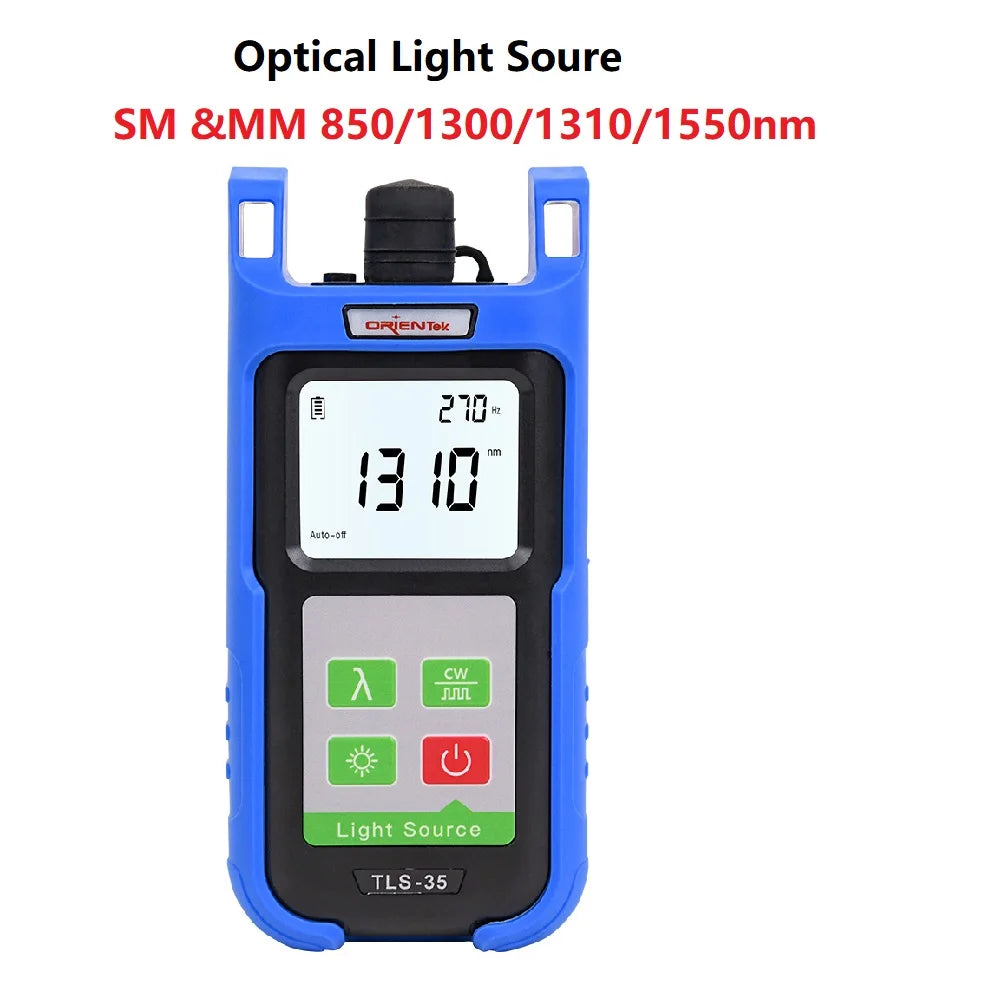

850+1300+1310+1550nm（TLS-35-MS) |
|
|

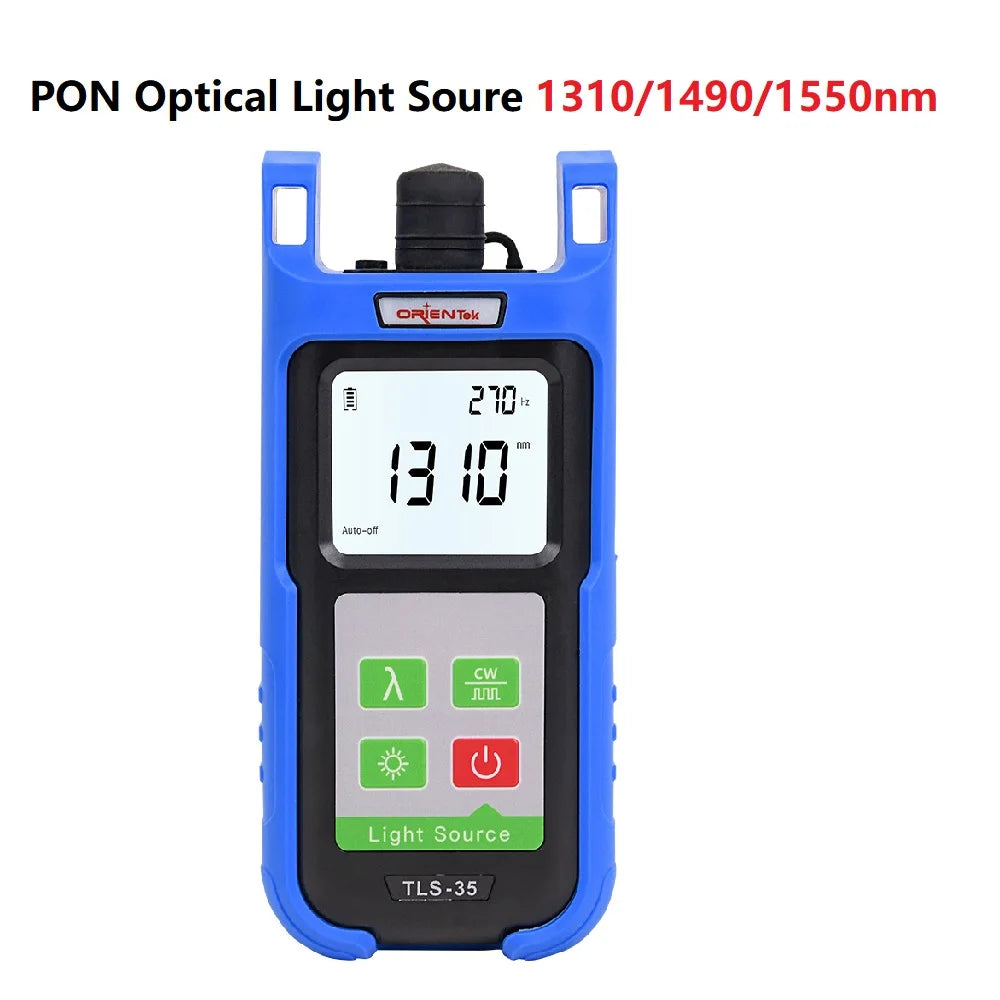

1310+1490+1550nm（TLS-35-PON) |
|
|
Output Power |
-5dB |
|
Optical Connector |
SC+ 2.5mm universal |
|
Power Supply |
3 AA 1.5V batteries (Package not included battery) |
|
Output Stability |
±0.05dB/15mins;±0.1dB/ 8hours |
|
Modulation Frequencies |
CW, 270Hz, 1KHz, 2KHz |
|
Dimensions / Weight |
160x85x45mm / 220g |

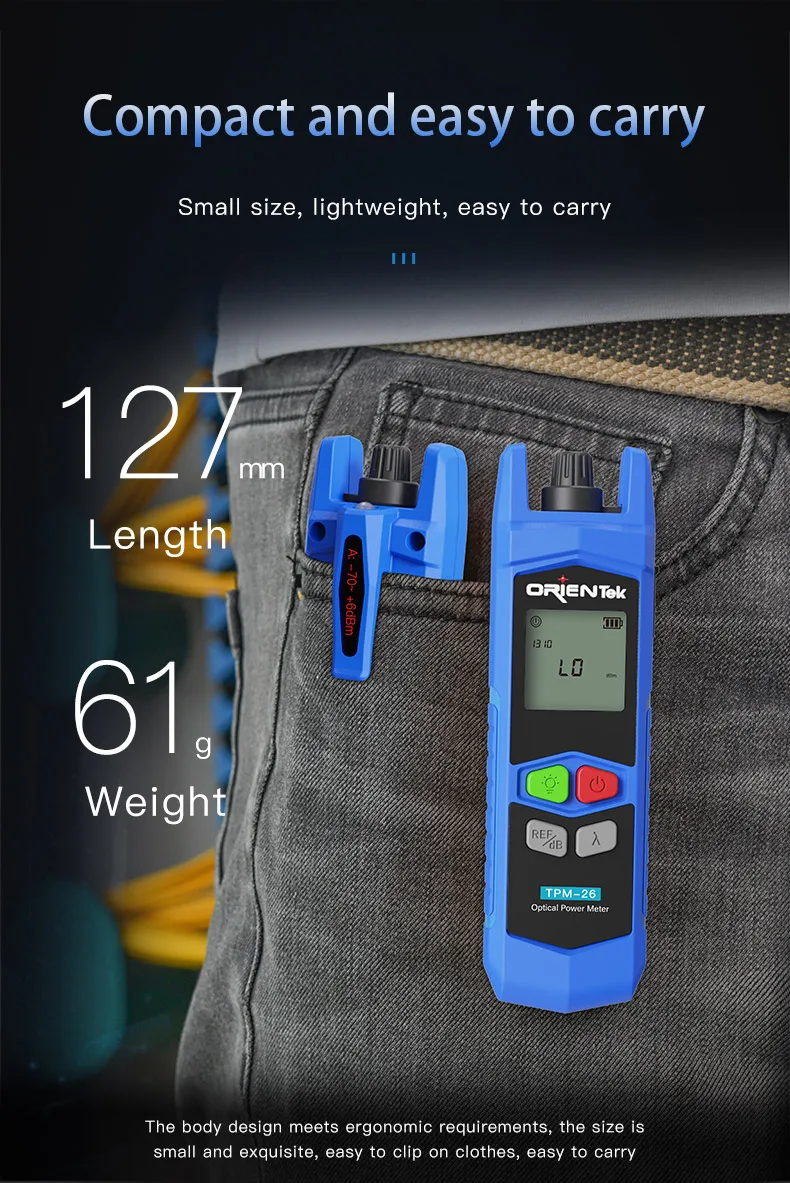

OrienTek TPM-26-A-G Power Meter
|
Type |
TPM-26-A-G |
|
Wavelengths(nm) |
850/980/1300/1310/1490/1550/1625(nm) |
|
Measurement Range |
-70~+ 6dBm |
|
Optical Connector |
2.5mm universal interface |
|
LED Light |
Available |
|
Power Supply |
AAA 1.5V * 2 pcs battery(Package not include battery) |
|
Resolution |
0.01dB |
|
Working Temperature |
-10~+60(°C) |
|
Storage Temperature |
-25~+70(°C) |
|
Dimensions/Weight |
127 x 36.5 x 28 mm 61g |
OrienTek TPM-25M Power Meter
|
Type |
TPM-25M |
|
Wavelengths(nm) |
850/980/1300/1310/1490/1550/1625(nm) |
|
Measurement Range |
-70~+10dBm |
|
Optical Connector |
2.5mm universal interface |
|
LED Light |
Available |
|
Power Supply |
AAA 1.5V * 2 pcs battery(Package not include battery) |
|
Resolution |
0.01dB |
|
Working Temperature |
-10~+60(°C) |
|
Storage Temperature |
-25~+70(°C) |
|
Dimensions/Weight |
137*60*37mm/180G |
